Offset Plates

Product Specifications:
• Plate type: Positive-working
• Substrate: Electro-chemically grained and anodized lithographic aluminum
• Laser type: Infra red 810-830nm
• Exposure energy: 120-140mj/cm2
• Resolution: 2-98% at 200lpi
• Run length: 150, 000 impressions
• Developing Temperature: 25-27 degree
• Developing Speed 26-30 sec
• Shelf life: 18 months

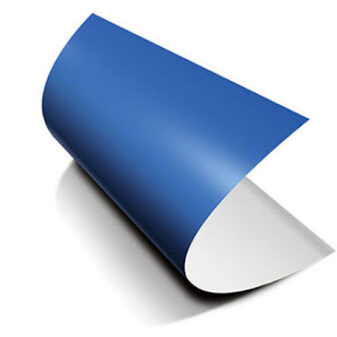

Product Specifications:
．Plate type: High sensitivity negative plate
．Substrate: Electro-chemically grained and anodized lithographic aluminum
．Spectral sensitivity: 405nm
．Exposure energy: 50-60mj/ cm2
．Resolution: 2-98%
．Run length: 150,000-200,000
．Exposure time: 16-18second
．Shelf life: 12 months

Positive CTcP Plate /UV Plate Product Specifications:
– Plate type: High sensitivity positive plate ．
– Substrate: Electro-chemically grained and anodized lithographic aluminum ．
– Spectral sensitivity: 405nm ．Exposure energy: 50-60mj/ cm2 ．
– Resolution: 2-98% ．
– Run length: 50,000-100,000 ．
– Exposure time: 16-18second ．
– Shelf life: 18 months

Positive PS plate Product Specification
Plate type: Conventional positive PS plate
Substrate: Electro-chemically grained and anodized lithographic aluminum
Spectral sensitivity: 350-430nm Resolution: 2-98%
Exposure energy: 110-200mj/cm2 Run-length: 100,000
Safelight: Yellow light
Guarantee period: 18 months
